Polymer Melt Filter Elements, Candle Filters, Filter Housing and Cartridges and Filter Fittings. Forms Including: Pleated Filter Elements, Pipe Filter Elements, Extruded Screen Packs, Filter Discs, Leafs, Baskets, Bags and etc. For filtering of air, gas, oil, grease, liquid and fuel.......

Fuel Water Separator Filter

Fuel Water Separator Filter also known as fuel filter. Two types according to materials: one is the metal mesh pleated filter elements (mostly stainless steel), the other is the diesel fuel water separator with pleated filter paper as filter media. The stainless steel mesh fuel filters are made by single layer or multi-layer metal mesh and filter material. The layer number and filter media are chosen according to different conditions of specific use and purpose.

Fuel Filters

Fuel Water Separator Filter Elements with Pleated Wire Mesh: can be made by single layer or multi-layer metal mesh as filter materials to meet requirements of various working conditions.

Features:
1) Good permeability;
2) High strength, no need to increase the support structure;
3) No material fall off phenomenon;
4) Good corrosion resistance;
5) Easy to clean, not easy to damage;
6) Fine and precise filtration rating.

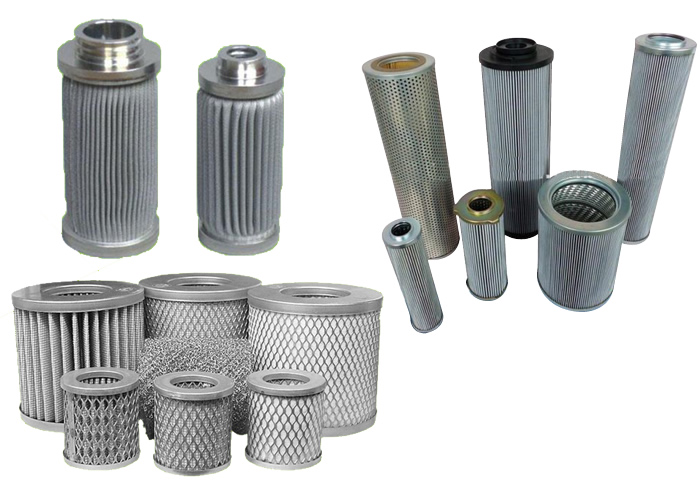

Metal Mesh Filter Elements for Fuel Separator

The metal stainless steel filter cylinder for fuel and water separation is widely used in various fields:
1)Used in high temperature environment for decentralized cooling material;
2) Used for gas distribution, liquid fluidized bed orifice plate materials;
3) Used for high precision, high reliability and high temperature filtration materials;
4) Used for high pressure reverse flushing oil filter
5) Used in ship diesel engine oil filter, fuel filter, oil products, the filter of food and beverage, chemical chemical fiber products, also used in water treatment, gas filter, etc.

Technical Details:

Highest working temperature 500 ℃ or less
Filtration accuracy 2-200 Um
Working temperature 0.1-30 mpa
Filter specifications 5 - 40 inches (according to customer's requirement)
The rated flow 80-200 l/min
Work pressure 1.5-1.5 pa
Filter area (m2)  0.01 - 0.20
The interface form 222, 226, 215, M36, M28, m2-m24, M22, M20 thread interface, etc



Note: Specifications can be Custom Made according to customer requirements.

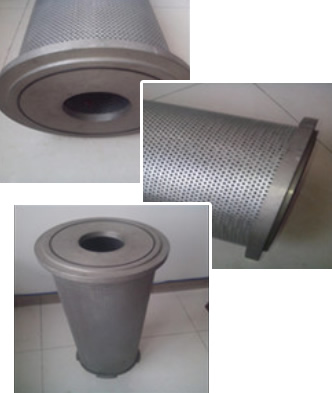

Diesel Fuel Water Separator For truck, Excavator and Cars

Support Perforted Tube for Diesel Fuel Filters



Structures:

Interior perforated metal tube, filter paper, protective metal plate cover and filter radial sealing.
Product Name: Fuel Filter

Place of Origin: China

Largest Cylinder Outside Diameter: 105mm

Overall Height: 290mm

Thread Size:16*1.5.
Custom specifications available upon request.
